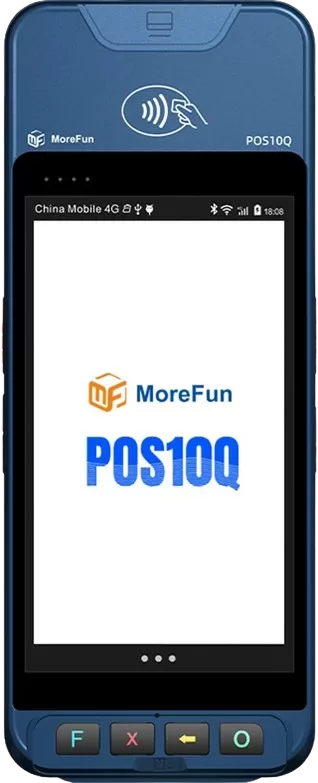

POS 10Q

OS

Android 10

Wireless Communication

4G(2G/3G compatible)

Processor

AP: Quad-Core ARM Cortex-A53, 1.4GHz
SP: ARMv7-M SecurCore, 144MH

Mag. Card Reader

Track 1/2/3, Bi-directional, ISO7811 standard

Display

5.5 inch IPS color screen 720*1280

IC Card Reader

Smart IC card reader, ISO7816, EMV/PBOC3.0 standard

Panel

Ultra sensitive capacitive touch screen

NFC Card Reader

Support ISO14443 Type A/B, Mifare / Felica card, Conform to qPBOC L1 &L2 standard

Memory

16GB EMMC + 2GB LPDDR3 Micro SD (TF card) up to 128GB

Printer

Built-in high-speed thermal printer, supports graphic printing Scroll width: 58mm Diameter: 40mm

Dimensions

82.7x201.1 ×52.9 mm

Camera

Rear camera: 5MP

Buttons

Front: User define button x 1, Cancel button x 1, Confirm button x 1, Clear button x 1; Side: SCAN button x 2, Volume button, ON / OFF button

GPS

GPS, Supports A-GPS, GNSS, Bei-Dou Satellite Navigation system

Fingerprint

Optional dedicated fingerprint module, FBI certified

2D Scanner

Optional, Support for Dedicated 2D Barcode Scanner and QR Reader in addition to camera

Extended Memory

TF card, up to 128GB

Vibration

Build-in vibrating motor (optional)

Battery

7.4V/2500mAh/18.5Wh (Equal to 3.7V/5000mAh)
7.4V/4200mAh/27.75Wh (Equal to 3.7V/8400mAh) (optional)

SIM / SAM Card

Support 2 SIMS, 1 PSAM or 1 SIM 2 PSAMS

Standard

Input AC 100V-240V, Output DC 5V/2A

WiFi

802.11 b/g/n wireless communication

Peripheral Ports

1 TYPE-C USB

Working Environment

Operating Temperature 0 °C~ 50 °C Storage Temperature -20°C ~ 60°C Humidity 5%~95% (non condensing)

Bluetooth

Audio

Speaker; (optional) Microphone; (optional) Earpiece

Certifications

EMV, PCI, Visa, Mastercard, America Express, Discover, CE, ROHS
